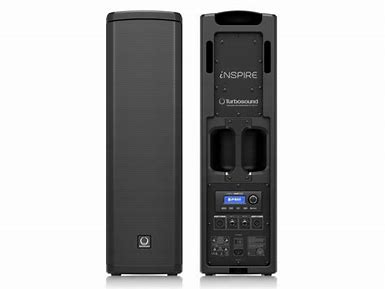

Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming Although we refer to it as a “column” loudspeaker, the INSPIRE iP300 delivers the powerful, high-quality sound and optimised dispersion inspired by our award-winning line array products – in a surprisingly lightweight and easy to use, all-in-one form factor. Thanks to an on-board 3-channel digital mixer and multichannel 600-Watt Class-D amplifier driving 2 x 6.5" high excursion low frequency drivers and 4 x 2" neodymium drivers, the iP300 is ideally-suited for small to medium-sized performance venues, houses of worship, boardroom presentations, nightclubs, and much more. Weighing in at a very modest 11.9 kg (26.2 lbs), the iP300 is easy to transport and features industry-leading KLARK TEKNIK Spatial Sound Technology, Reverb, and Class-D multichannel amplifier – plus convenient Bluetooth stereo audio streaming and iPhone/iPad remote control. # Column loudspeaker for portable PA applications and high quality music playback # KLARK TEKNIK’s revolutionary SST (Spatial Sound Technology) for creating 3D acoustic environments # Extremely wide sound dispersion provides consistent sound to the audience and performers # 600 Watt power, multi-channel KLARK TEKNIK Class-D technology # 3 channel digital mixer with gain setting recall # High-quality KLARK TEKNIK digital reverb for amazing vocal enhancement # Comprehensive remote control via Apple iPhone/iPad* # High quality Bluetooth* stereo audio streaming # DSP presets for application type and speaker positioning # Intuitive single rotary control user interface with LCD display for ease of navigation # Dual 6.5" high excursion low frequency driver for low distortion sub-bass response # 4 x 2" neodymium drivers with edge wound aluminium voice coils for extended high frequency reproduction # Multiple height configurations for floor or elevated use # High impact and lightweight enclosure 2 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming *The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. All third-party trademarks are the property of their respective owners. Their use neither constitutes a claim of the trademark nor affiliation of the trademark owners with MUSIC Group. Product names are mentioned solely as a reference for compatibility, effects and/or components. Warranty details can be found at music-group.com. # Integrated protective perforated steel mesh grilles # Integral ergonomic carrying handle for ease of portability # 3-Year Warranty Program* # Designed and engineered in the U.K. Tiny PA – 600 Watts of Perfect Sound Compact and designed for maximum portability, iP300 setup is fast and easy; just attach the column section(s) to the base and connect your mic or mixer feed and power. Our revolutionary Class-D amplifier technology provides 600 Watts of incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with an industry-leading DSP module, provides dynamic equalisation and sophisticated limiting functions to ensure optimal performance and long-term reliability. The powerful iP300 fills the room with the world-famous TURBOSOUND “sound” that has won the coveted Queen’s Award – an unprecedented three times. 3 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming Outstanding Sound Dispersion Much like the huge line array systems you’ve experienced at concerts and outdoor festivals (we make those too), the 2" neodymium midrange / extended high-frequency drivers in the iP300 columns are strategically placed to provide an extremely wide dispersion pattern. Such wide coverage eliminates the need for monitor wedges for the performers and creates a more even, sonically balanced soundscape that covers the entire room. By taking advantage of the arrival-time differential between sound waves reaching the left and right ears, iP300's groundbreaking Spatial Sound Technology (SST) creates a wide, well-defined virtual 3-D acoustic environment, enveloping the listener in a richer and more realistic experience. No matter where you sit, the location of the onstage voices and instruments are perceived in their rightful position within the soundscape, for a performance that is beautifully open and transparent – with unparalleled intelligibility.unprecedented three times. KLARK TEKNIK – Inspired Technology KLARK TEKNIK is recognised worldwide as one of the most prestigious British audio companies, with a 40-year pedigree and even a TEC Lifetime Achievement Award to back it up. The Company has designed and manufactured products for world-class artists, and their legendary DN780 reverb processor is considered by leading audio engineers around the world as the industry standard. Check out their website to learn more about KLARK TEKNIK's legendary heritage. TURBOSOUND is proud to incorporate custom-engineered KLARK TEKNIK Class-D amplifier and DSP technologies into their products. DSP – the Secret to Superb Sound From the instant your signal enters the iP300, the built-in DSP takes over ensuring the highest possible signal integrity. Much more than just selective EQ enhancement, the 24-bit processor analyses the incoming signal and intelligently applies specific filters to actually improve the sound quality. It’s like having an audio engineer monitoring the input and output signals, dialing in the perfect EQ and constantly making subtle adjustments to the crossover, compressor/limiter, three discrete amplifier channels and more – all of which adds up to significantly better sound. 4 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming Custom-Engineered Drivers Our speakers are designed specifically for each application – it’s what sets us apart from the competition. When you buy a TURBOSOUND speaker system, you can rest assured that the speakers inside have been engineered to perform flawlessly in conjunction with every other element for truly professional results. Bluetooth Ready The days of tape decks, CD and even mp3 players are long gone. Now your music lives on your smartphone or computer tablet, so you can stop searching for those outdated cables and fancy adapters. An industry first, the iP300 puts all your music at your fingertips via stereo Bluetooth. Now with a simple wave of your hand, you can stream music from any Bluetooth-equipped iOS device, such as your iPad, iPod touch, iPhone – or even your laptop computer. Built-in Digital Mixer – Comprehensive Remote Control The iP300 features a fully addressable onboard digital mixer with two combo jack/XLR connectors that accept balanced and unbalanced connections for dynamic mics and line-level instruments. The simple and intuitive user interface consists of a single rotary push-encoder with Process, Setup, Exit and Enter function buttons. A beautifully-backlit display controls DSP functions including mixer parameters, 3 band EQ, and presets. All settings can be controlled locally, or via free downloadable iPhone/iPad apps – and locked down to prevent unauthorised access. We take Bluetooth a step further, giving you total control of the iP300 directly from your iPhone or iPad. This amazing feature lets you adjust all settings from either the listening area or the stage, for the perfect sound every time. The dedicated apps are available free of charge at turbosound.com, or from the Apple App Store. 5 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming Stunning Performance – Superb Value The INSPIRE iP300 active PA loudspeaker stands head and shoulders above the rest of the pack and delivers exceptional performance, even when pushed to the limit. Ultra-lightweight and powerful with custom-designed transducers, an integrated mixer, stereo Bluetooth streaming, iPhone/iPad remote control, 600 Watts of Class-D output power and Digital Sound Processing, the iP300 is ideal for both portable and installed applications – at a price unheard of in this class. Experience the iP300 at your local dealer today, or get yours online today – and let TURBOSOUND take your performance to the next level! You Are Covered We always strive to provide the best possible Customer Experience. Our products are made in our own MUSIC Tribe factory using state-of-the-art automation, enhanced production workflows and quality assurance labs with the most sophisticated test equipment available in the world. As a result, we have one of the lowest product failure rates in the industry, and we confidently back it up with a generous Warranty program. 6 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming Frequency Response Sensitivity 1 W / 1 m 20 100 1k 10k 20k 62 68 74 80 86 92 98 104 110 Frequency (Hz) Sound Pressure Level (dB) Mode:stand music Full Range 20 100 1k 10k 20k 62 68 74 80 86 92 98 104 110 Frequency (Hz) Sound Pressure Level (dB) Full Range Mode:stand music Mode:stand live Mode:stand speech Mode:stand club 7 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming 20 100 1k 10k 20k 10 100 300 Frequency (Hz) Beamwidth (deg) -9 dB -3 dB -6 dB Horizontal Beamwidth 20 100 1k 10k 20k 10 100 300 Frequency (Hz) Beamwidth (deg) -3 dB -6 dB -9 dB Vertical Beamwidth 8 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming 500 Hz 630 Hz 800 Hz 1000 Hz 200 Hz 250 Hz 315 Hz 400 Hz 1200 Hz 1600 Hz 2000 Hz 2500 Hz 3150 Hz 4000 Hz 5000 Hz 6300 Hz 8000 Hz 10000 Hz 12500 Hz 16000 Hz -6 0 30 210 60 240 90 270 120 300 150 330 180 0 -6 0 30 210 60 240 90 270 120 300 150 330 180 0 -6 0 30 210 60 240 90 270 120 300 150 330 180 0 -6 0 30 210 60 240 90 270 120 300 150 330 180 0 -6 0 30 210 60 240 90 270 120 300 150 330 180 0 Horizontal Polar Plots 9 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming Vertical Polar Plots 500 Hz 630 Hz 800 Hz 1000 Hz 200 Hz 250 Hz 315 Hz 400 Hz 3150 Hz 4000 Hz 5000 Hz 6300 Hz 1200 Hz 1600 Hz 2000 Hz 2500 Hz 8000 Hz 10000 Hz 12500 Hz 16000 Hz -6 0 30 210 60 240 90 270 120 300 150 330 180 0 -6 0 30 210 60 240 90 270 120 300 150 330 180 0 -6 0 30 210 60 240 90 270 120 300 150 330 180 0 -6 0 30 210 60 240 90 270 120 300 150 330 180 0 -6 0 30 210 60 240 90 270 120 300 150 330 180 0 10 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming Dimensions TOP BOTTOM SIDE FRONT BACK CL CL CL CL 215.9 [8.5] 103.0 [4.1] 334.0 [13.1] 158.0 [6.2] 164.0 [6.5] 208.3 [8.2] 712.8 [28.1] 71.4 [2.8] 11 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming Technical Specifications System Frequency response 50 Hz – 20 kHz ±3 dB 40 Hz – 20 kHz -10 dB Nominal Dispersion 120° H @ -6 dB points Maximum SPL 122 dB Crossover type 2 way, active Transducers 2 x 6.5" (167 mm) LF driver 4 x 2" (54.2 mm) HF driver Limiter Independent high, mid and low frequency Amplifier Maximum output power* 600 W Type LF: Class-D HF: Class AB Protection Short circuit, open circuit, thermal Amplifier channels 2 Connectors Input A / B 2 x combo jack / XLR Sensitivity 4 dBu, nominal Input impedance 16 kΩ unbalanced, 32 kΩ balanced Maximum input level +22 dBu Link output XLR Mains supply IEC mains connector with integrated power switch† Controls Hardware Rotary push-encoder Software iOS/Android interface via Bluetooth DSP Factory EQ presets Positioning, sound mode Display LCD 128 x 32, blue, backlit Level Main Equalisation Bass, middle and treble Protection Lock-out function for all settings Input Mixer Equalisation Bass and treble Reverb KLARK TEKNIK design 12 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming Technical Specifications Bluetooth Wireless Technology Frequency range 2402 MHz ~ 2480 MHz Channel number 79 Version Bluetooth 4.1 dual mode Output 8 dBM Compatibility Supports GATT/A2DP 1.2 profile Maximum communication range 30 m typical Connectivity Master-slave: stereo pairing link Power Supply Power consumption 80 W @ 1/8 max power Voltage (fuses) USA / Canada / Japan 100-120 V~, 50/60 Hz (T 6.3 A H 250 V) UK / Australia / Europe 220-240 V~, 50/60 Hz (T 3.15 A H 250 V) Korea / China 220-240 V~, 50/60 Hz (T 3.15 A H 250 V) Enclosure Dimensions (H x W x D) 713 x 208 x 216 mm (28.1 x 8.2 x 8.5") Net weight 11.9 kg (26.2 lbs) Construction Engineering plastic (GXPP) Finish Semi matt black paint Grille Powder coated perforated steel 13 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming 14 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming 15 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming 16 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming 17 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming 18 of 19 Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming For service, support or more information contact the TURBOSOUND location nearest you: Europe MUSIC Tribe Brands UK Ltd. Tel: +44156 273 2290 Email: [email protected] [email protected] [email protected] USA/Canada MUSIC Tribe Commercial NV Inc. Tel: +1 702 800 8290 Email: [email protected] [email protected] [email protected] Japan MUSIC Tribe Services JP K.K. Tel: +81 3 6231 0453 Email: [email protected] [email protected] [email protected] MUSIC Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA and COOLAUDIO are trademarks or registered trademarks of MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2018 All rights reserved. Product Information Document Portable iNSPIRE iP300 600 Watt Powered Column Loudspeaker with 2 x 6.5" Woofers, 4 Neodymium Drivers, KLARK TEKNIK Spatial Sound Technology, Reverb, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming
